Quanlity comes from design

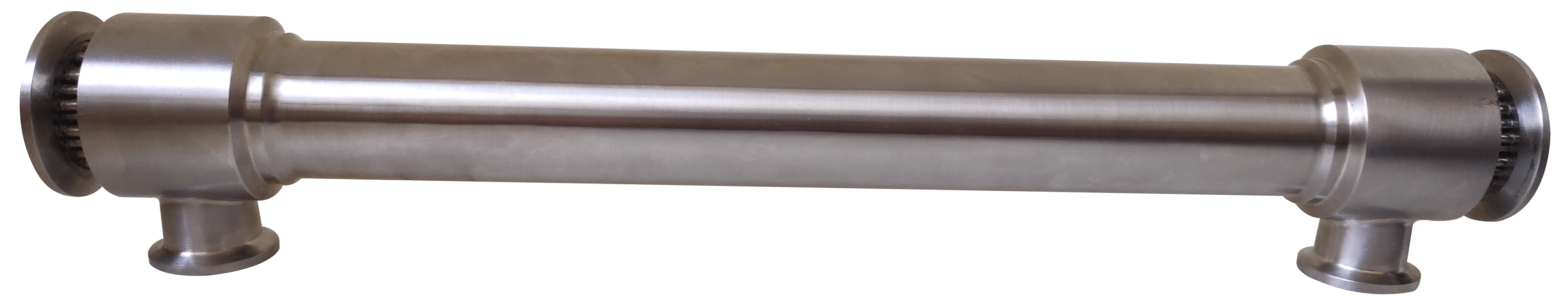

A new series of heat exchangers for pharmceutical and food industries and suitable for all other

applications that are in compliance with FDA and 3A.The unique construction of P-LINE and S-LINE

series heat exchangers prevents cross-contamination of the media even in the case of unsealing of

the tubesheet-tube connections;it also ensure correct operation in applications requiring the

highest standards of cleanliness.

APPLICATION:

-cooling processing, limited size, convient installation

INDUSTRIES:

-pharmaceutical

-biotech

-cosmetics,fragrances

-semiconductor

-high purity

Pharmaceutical:

-clean steam

-blood,plasma or media growth cooling systems

-water for injection systems(WFI)

-process equipment

GENERAL DATA:

Design pressure

-Tube side:0.5 MPa

-shell side:0.8 MPa

Design temperature

-tube side : -17 ℃/121℃

-shell side: -25℃/95℃

Surface finish of clean side: Ra ≤0.4um

CHARACTERISTICS:

-full compliance with FDA,c GMP and 3A requirements

-construction made of 316L stainless steel

-system of complete separation of the media,even in the case of unsealing at the tube sheet

-dismountable construction without dead spots ,minimizing the possibility of microbial growth,

-all surfaces in contact with the clean medium polished to Ra≤0.4um

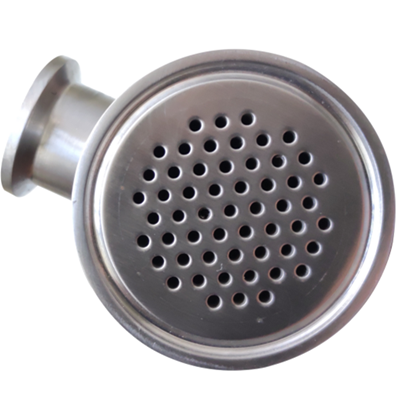

-certificated seamless tubes of the exchanger ,polished internally and externally

-only one pass, straight tube design

-both vertical and horizontal mounting available

CONNECTIONS:

-connections on the tube side-”tri-clamp” type sanitary connectors in accordance with DIN 32676

-possible sanitary clamps acc. To ASME BPE or SMS3017

-connections on the shell side are screw or tri-clamp

-connections according to ASME B16.5 on request
